Components

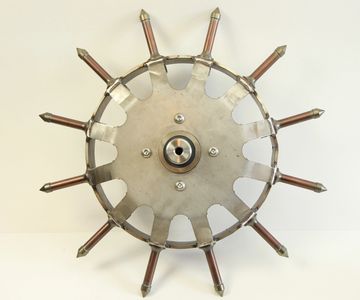

SpikeWheel™

The complete SpikeWheel™. Constructed of 304 Stainless Steel, Hardened Alloy Injection points, and nylon hub bushings. Provides superior down pressure in hard soils.

Part #:  SW15CP-21 300EL

                                                                                                               Call for pricing

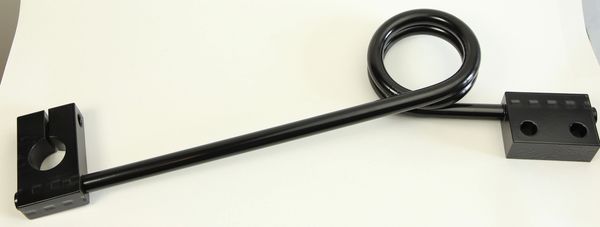

Spring Arms



Allows SpikeWheel™ to be mounted to a variety of applications. 5/8" mounting block holes are set on 2" centers and permit attachment to toolbars with "ditcher bars", existing cultivators, and planters. Available in 3/4" or 7/8" spring diameter.

Part #:

3/4"    BO-750-15

7/8"    BO-875-15

                                                                                                                          Call for pricing

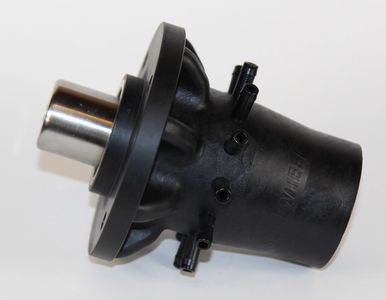

Composite Distribution Hub

The complete distribution hub assembly. Hub shell is constructed of a composite material with a nylon metering sleeve and bushings.

Part #:  1500 CP

                                                                                                                       Call for pricing

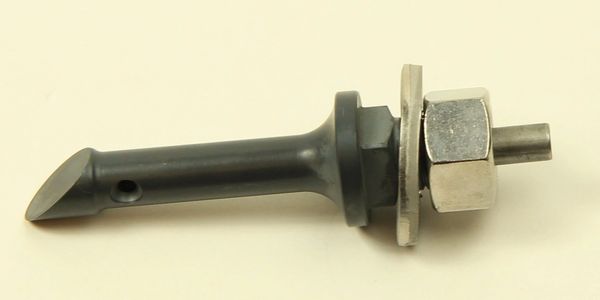

Injection Spikes

Each set contains 12 replacement bolt on SpikeWheel injection spikes which come in  3 1/2 inch length for Ag applications or 2 inch for turf applications.  Each is hardened for longer wear life.
Part #:
    SWT02-12  (2 inch)
    SW300EL-12 (3 1/2  inch)

                                                                                                                      Call for pricing

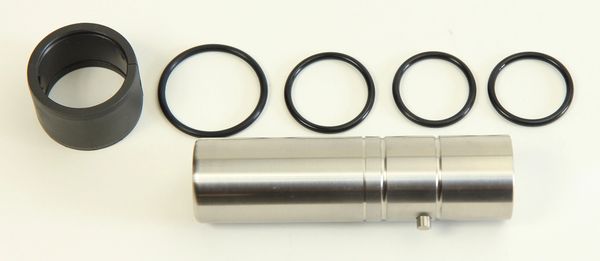

Basic Hub Rebuild Kit

Basic kit for rebuilding the distribution hub. Includes the following:
                        (1)                      Axle Shaft
                        (4)                      O-Rings
                        (1)                      Axle Bushing

Part #:  BHRK-06

                                                                                                                  Call for pricing

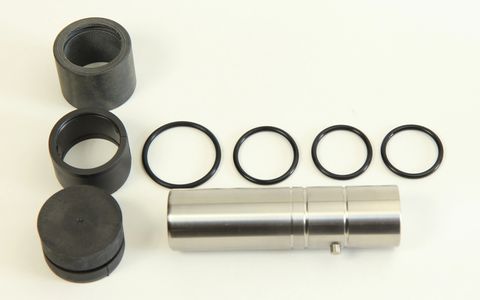

Master Hub Rebuild Kit

Master                      Hub Rebuild Kit
                    Complete kit for rebuilding the distribution hub. Includes                      all internal components which are:
                        (1)                      Axle Shaft
                        (4)                      O-Rings
                        (3)                      Bushings

Part #:  MHRK-08
                                                                                                              Call for pricing

Speciality Components

Small SpikeWheel

This SpikeWheel is 12 inches in diameter and designed for the vineyard applicators or can be used in applications where there is an overhanging plant canopy.  It can be combined with either the turf points or the Ag Spikes.

Part #:  SW15CP-12 S2

Part #:  SW15CP-12 300EL

                                                                                                                         Call for pricing

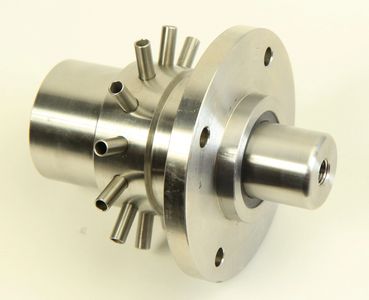

Stainless Steel Distribution Hub

The complete distribution hub assembly. Hub shell is constructed of 304 stainless with a nylon metering sleeve and bushings.

Part #:  1500

                                                                                                                    Call for pricing

Turf Injection Spikes

Each set contains 12 replacement bolt on SpikeWheel injection spikes which are 2 inches in length and designed for turf applications.  Each is hardened for longer wear life.

Part #:  SWT02-12  (2 inch)

Service Parts

Connector Tubes

Kit containing set of 12 connector tubes. Attaches to fittings on the distribution hub and provides product flow to each injection point.
Part #:  TCON-12

                                                                                                                   Call for pricing

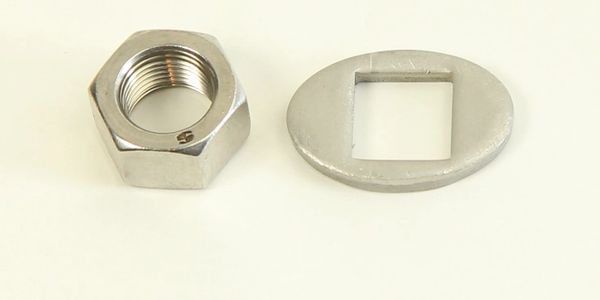

Nuts & Washers for all Bolt On Injector Spikes

Each set contains 12 of each stainless steel nut and stainless steel washer used to attach all bolt on injector spikes to the SpikeWheel Dish.
Part #:
              SSN-58 Nut
              SSW-58 Washer

                                                                                                                  Call for pricing

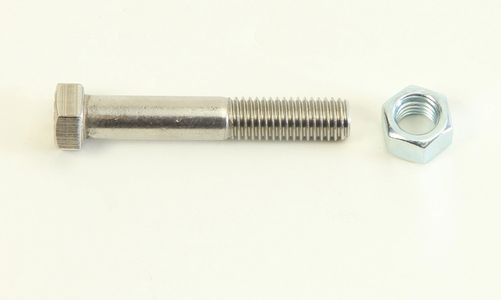

Spring Arm Mounting Hardware

Part #:  13315 Spring Arm Mounting Bolt

Part #: 37349 Spring Arm Mounting Nut

Part #:  70215 Spring Arm Pinch Bolt

Part #:  36110 Spring Arm Pinch Nut

                                                                                                       Call for pricing

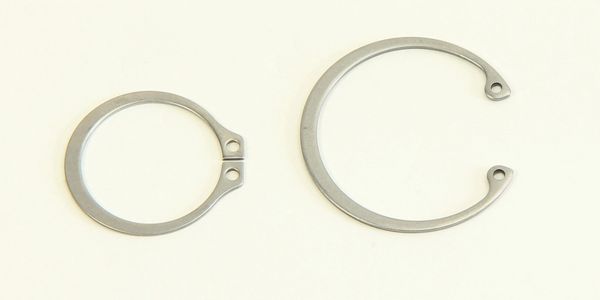

Snap Rings

Complete Snap Ring Kit for the distribution hub.   Contains one external stainless steel snap ring and one stainless steel internal axle snap ring.

Part #:  SRK-02

                                                                                                                    Call for pricing

Axle Bushing Driver

Useful tool for working on the internal components of the hub.

Part #:  ABD150

                                                                                                          Call for pricing

Supply Fittings

Individual  90 degree supply pieces. 1/4" inside diameter tubing is slipped over the tip to supply  product to axle shaft. These come in 3 types poly barbed, stainless compression or poly compression.

         Part #:  P90-01

         Part #:  SW6ME4

         Part #:  1569PX6G

                                                                                                                       Call for pricing



Internal Hub Bushings

There are 3 bushings inside the distribution hub.

     Part #:  S1502P Axle Bushing

     Part #:  S1503P Metering Sleeve

     Part #:  S1504P Blind Bushing

                                                                                                                        Call for pricing

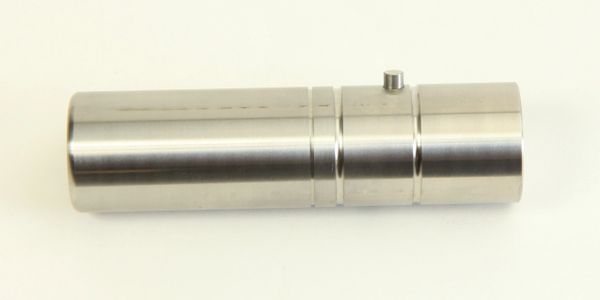

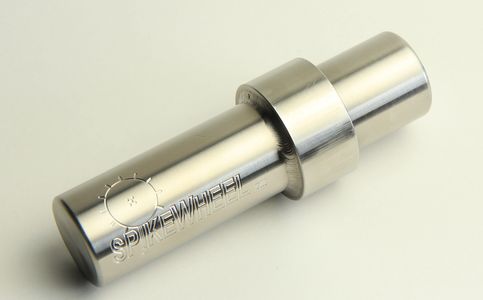

Axle Shaft

Stainless Steel Axle Shaft for the distribution hub.

Part #:  S1501

                                                                                            Call for pricing

Tool Bar Components

Call for availability and pricing
